ปรับปรุง : 2556-07-27 (ปรับคำอธิบายโค้ดใหม่)
OOP :: intro ch1-12 :: keyword & sign :: method calling :: series #1 :: series #2 :: series #3 :: pro_pmy
ขอบซ้ายขอบบน
Introduction to frame
1. AWT ใน console และ window close
:: เป็นเพียงตัวอย่างการแสดงฟอร์มแบบสั้นที่สุด และมีปุ่มปิด
:: ถ้าไม่มี windowClosing ก็ต้องเข้า Console แล้วกด Ctrl-C
:: ตัวอย่างนี้ไม่ได้เรียกใช้ actionPerformed แต่ต้องประกาศไว้ มาคู่กับ ActionListener
:: java.awt ต้องใช้กับ Frame
:: java.awt.event ต้องใช้กับ ActionListener, ActionEvent และ WindowEvent

import java.awt.*;
import java.awt.event.*;
public class x implements ActionListener {
  public static void main(String[] args) {
    Frame s = new Frame("Screen");
    s.setSize(150,150);
    s.setVisible(true);
    s.addWindowListener(new WindowAdapter(){
      public void windowClosing(WindowEvent we){
        System.exit(0);
      }
    });
  }
  // actionPerformed is abstract so it must be declared here
  public void actionPerformed(ActionEvent a) { }
}
2. close button แบบ static
:: ตัวอย่างนี้พยายามให้ทุกอย่างอยู่ใต้ main ที่เป็น static แต่ก็มีข้อยกเว้น
:: actionPerformed ทำ static ไม่ได้ เพราะมาแบบ abstract
:: ใน actionPerformed เรียกหา bclose จึงต้องอยู่นอก main
:: System.out มีไว้แสดง message ใน console

import java.awt.*;
import java.awt.event.*;
public class x implements ActionListener {
  static Button bclose = new Button("Exit");
  public static void main(String[] args) {
    Frame s = new Frame("Screen");
    s.setSize(150,150);
    s.setLayout(null);
    s.setVisible(true);
    s.setBackground(new Color(0, 255, 0));
    bclose.setBounds(10,40,70,20);
    s.add(bclose);
    x myx = new x();
    bclose.addActionListener(myx);
  }
  public void actionPerformed(ActionEvent a) {
	System.out.println(a.getSource() + "1");
    // java.awt.Button[button0,10,40,70x20,label=Exit]
	System.out.println(bclose + "2");
    if(a.getSource()==bclose) { System.exit(0); }
  }
}
ขอบซ้ายขอบบน
Right frame
3. สร้างปุ่ม Exit เพื่อปิด frame
:: ใช้ x.init(); ได้ ถ้าใช้ต้องปรับ init, frame, button เป็น static
:: เปลี่ยน this เป็น new x() เพราะ bclose.addActionListener ต้องการ instance ซึ่งเขียนได้หลายแบบ

import java.awt.*;
import java.awt.event.*;
public class x implements ActionListener {
  Frame s = new Frame("Screen");
  Button bclose = new Button("Exit");
  public static void main(String[] args) {
    new x().init();
  }
  public void init( ) {
    s.setSize(150,150);
    s.setLayout(null);    // ถ้าไม่มี setLayout และ setVisible จะกลายเป็นปุ่มเต็มจอ
    s.setVisible(true);
    s.setBackground(Color.yellow);
    bclose.setBounds(10,40,70,20);
    s.add(bclose);
    bclose.addActionListener(this);
  }
  public void actionPerformed(ActionEvent a) {
    if(a.getSource()==bclose) { System.exit(0); }
  }
}
// การ compile และ run ก็ใช้ javac และ java ตามปกติ
// คำสั่ง System.exit(0) หมายถึง Stops Java Virtual Machine (JVM)
4. textbox ใน awt และการเปิดให้ปุ่ม windowsclosing ทำงาน

import java.awt.*;
import java.awt.event.*;
public class x implements ActionListener {
  Frame s = new Frame("Screen");
  TextField txt = new TextField(20);
  public static void main(String[] args) {
    new x().burin();
  }
  public void burin( ) {
    s.setSize(150,150);
    s.setLayout(null);
    s.setVisible(true);
    txt.setBounds(10,30,100,20);
    txt.setText("ข้อมูล");
    s.add(txt);
    s.addWindowListener(new WindowAdapter(){
      public void windowClosing(WindowEvent we){
        System.exit(0);
      }
    });
  }
  public void actionPerformed(ActionEvent a) { }
}
5.สร้างปุ่มเพิ่มเลขทีละ 5 และปุ่ม exit

import java.awt.*;
import java.awt.event.*;
public class x implements ActionListener {
  Frame s = new Frame("Screen");
  Button bclose = new Button("Exit");
  Button badd = new Button("Add");
  TextField txt = new TextField(10);
  public static void main(String[] args) {
    new x().init();
  }
  public void init( ) {
    s.setSize(150,150);
    s.setLayout(null);
    s.setVisible(true);
    s.setBackground(Color.yellow);
    txt.setBounds(10,40,70,20);
    badd.setBounds(10,70,70,20);
    bclose.setBounds(10,100,70,20);
    s.add(txt);
    s.add(badd);
    s.add(bclose);
    badd.addActionListener(this);
    bclose.addActionListener(this);
    txt.setText("0");
  }
  public void actionPerformed(ActionEvent a) {
  String aa= Double.toString(Double.parseDouble(txt.getText()) +5);
  //String aa= Integer.toString(Integer.parseInt(txt.getText()) +5);
  if(a.getSource()==badd) { txt.setText(aa); }
  if(a.getSource()==bclose) { System.exit(0); }
  }
}
ขอบซ้ายขอบบน
New frame
6. สร้างปุ่มเรียก frame ใหม่

import java.awt.*;
import java.awt.event.*;
public class x implements ActionListener {
  Frame s1 = new Frame("Screen1");
  Frame s2 = new Frame("Screen2");
  Button bclose = new Button("Exit");
  Button bshow2 = new Button("show2");
  public static void main(String[] args) {
    new x().init();
  }
  public void init( ) {
    s1.setSize(150,150);
    s1.setLayout(null);
    s1.setBackground(Color.yellow);
    s2.setSize(150,150);
    s2.setLayout(null);
    s2.setBackground(Color.green);
    bshow2.setBounds(10,70,70,20);
    bclose.setBounds(10,100,70,20);
    s1.add(bshow2);
    s1.add(bclose);
    bshow2.addActionListener(this);
    bclose.addActionListener(this);
    s1.setVisible(true);
  }
  public void actionPerformed(ActionEvent a) {
    if(a.getSource()==bshow2) {
       s1.setVisible(false);
       s2.add(bclose);
       bclose.addActionListener(this);
       s2.setVisible(true);
    }
    if(a.getSource()==bclose) System.exit(0);
  }
}
ขอบซ้ายขอบบน
JTable
7. สร้างตารางแสดงข้อมูลแบบ manual และมี scroll bar

import java.awt.*;
import java.awt.event.*;
import javax.swing.*;
public class x implements ActionListener{
Frame f = new Frame("JTable");
public static void main(String args[]) {
new x().init();
}
void init() {
f.setSize(700,400);
f.setLocation(80,50);
f.setLayout(null);
f.setResizable(true);
f.setBackground(Color.pink);
showJtable(); // it should be before setVisible
f.setVisible(true);
}
public void actionPerformed(ActionEvent a) { }
public void showJtable() {
String TableHeader[] = {"no","name"};
String TableArr[][]=new String[50][2]; // row=6,column=2
try {
TableArr[0][0]=Integer.toString(1); // row=0 column=0
TableArr[1][0]=Integer.toString(2); // row=1 column=0
TableArr[0][1]="jack"; // row=0 column=1
TableArr[1][1]="jojo"; // row=1 column=1
JTable TitleTable;
JScrollPane DataInTable;
TitleTable = new JTable(TableArr,TableHeader);
TitleTable.setVisible(true);
TitleTable.setEnabled(false);
DataInTable = new JScrollPane(TitleTable);
DataInTable.setBounds(5,50,600,200); // left, top,width,height
f.add(DataInTable);
} catch (Exception e){ System.err.println(e); }
}
}
8. Jtable & Textbox
:: คลิ๊กใน Table แล้วแสดงค่าใน Textbox
:: http://www.java2s.com/Code/JavaAPI/javax.swing/JTablesetCellSelectionEnabledbooleancellSelectionEnabled.htm
:: http://stackoverflow.com/questions/12301923/jtable-getselectedrow-does-not-return-the-selected-row-index

import java.awt.*;
import java.awt.event.*;
import javax.swing.*;
import javax.swing.event.*;
public class y implements ActionListener{
Frame f = new Frame("JTable");
JTable TitleTable;
TextField txt = new TextField(10);
public static void main(String args[]) {
new y().init();
}
void init() {
f.setSize(700,400);
f.setLocation(80,50);
f.setLayout(null);
f.setBackground(Color.pink);
txt.setBounds(1,40,70,20);
f.add(txt);
showJtable(); // it should be before setVisible
f.setVisible(true);
}
public void actionPerformed(ActionEvent a) {
}
public void showJtable() {
String TableHeader[] = {"no","name"}; // not show in header
String TableArr[][]=new String[3][2]; // row=6,column=2
try {
TableArr[0][0]=Integer.toString(1); // row=0 column=0
TableArr[1][0]=Integer.toString(2); // row=1 column=0
TableArr[0][1]=ThaiUtil.ASCII2Unicode("ที่นี่"); // row=0 column=1
TableArr[1][1]=ThaiUtil.ASCII2Unicode("ดูนี่"); // row=1 column=1
TitleTable = new JTable(TableArr,TableHeader);
TitleTable.setVisible(true);
TitleTable.setEnabled(true); // true = can change
TitleTable.setBounds(5,80,600,300);
f.add(TitleTable);
TitleTable.getSelectionModel().addListSelectionListener(
  new ListSelectionListener() {
  public void valueChanged(ListSelectionEvent e) {
    if (!e.getValueIsAdjusting()) {
      System.out.println(TitleTable.getSelectedRow());
      System.out.println(TitleTable.getSelectedColumn());
	  System.out.println(TitleTable.getModel().getValueAt(0, 1));
      txt.setText(Integer.toString(TitleTable.getSelectedRow()));
    }
  }
});
} catch (Exception e){ System.err.println(e); }
}
}
9. Listbox & Row selection

import java.awt.*;
import java.awt.event.*;
import javax.swing.*;
import javax.swing.event.*;
import javax.swing.table.*;
//  @see http://stackoverflow.com/q/12301923/230513
public class z extends JPanel {
    private static final String SHOW = "Show";
    private DefaultTableModel model = new DefaultTableModel();
    private JTable table = new JTable(model);
    private JButton button = new JButton(new AbstractAction(SHOW) {
        public void actionPerformed(ActionEvent e) {
            System.out.println(table.getSelectedRow());
        }
    });
    public z() {
        model.addColumn("Column");
        for (int i = 0; i < 16; i++) { model.addRow(new Object[]{i}); }
        table.setPreferredScrollableViewportSize(new Dimension(160, 100));
        table.setSelectionMode(ListSelectionModel.SINGLE_SELECTION);
        table.getSelectionModel().addListSelectionListener(
            new ListSelectionListener() {
            public void valueChanged(ListSelectionEvent e) {
                if (!e.getValueIsAdjusting()) {
                    button.setText(SHOW + " " + table.getSelectedRow());
                }
            }
        });
        this.add(new JScrollPane(table));
        table.setRowSelectionInterval(3, 3);
    }
    private void display() {
        JFrame f = new JFrame("TableSelection");
        f.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
        f.add(this, BorderLayout.CENTER);
        f.add(button, BorderLayout.SOUTH);
        f.pack();
        f.setLocationRelativeTo(null);
        f.setVisible(true);
    }
    public static void main(String[] args) {
        EventQueue.invokeLater(new Runnable() {
            public void run() {
                new z().display();
            }
        });
    }
}
ขอบซ้ายขอบบน
ThaiUtil
10. เปลี่ยนระหว่าง Unicode กับ Ascii

public class ThaiUtil {
    /* Creates a new instance of ThaiUtil
       http://www.narisa.com/forums/index.php?showtopic=2738  */
    public static String Unicode2ASCII(String unicode) {
        StringBuffer ascii = new StringBuffer(unicode);
        int code;
        for(int i = 0; i < unicode.length(); i++) {
            code = (int)unicode.charAt(i);
            if ((0xE01<=code) && (code <= 0xE5B ))
                ascii.setCharAt( i, (char)(code - 0xD60));
        }
        return ascii.toString();
    }
    public static String ASCII2Unicode(String ascii) {
        StringBuffer unicode = new StringBuffer(ascii);
        int code;
        for(int i = 0; i < ascii.length(); i++) {
            code = (int)ascii.charAt(i);
            if ((0xA1 <= code) && (code <= 0xFB))
                unicode.setCharAt( i, (char)(code + 0xD60));
        }
        return unicode.toString();
    }
}

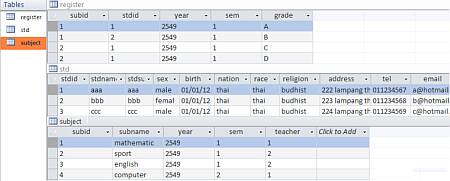

student.mdb size 118 KB
11. อ่านข้อมูลจากตารางมาแสดงใน textarea

import java.sql.*;
import java.awt.*;
import java.awt.event.*;
import javax.swing.*;
public class x implements ActionListener{
Connection connection;
Statement statement;
TextArea text =new TextArea();
String sourceURL = "jdbc:odbc:student";
Frame f = new Frame("select");
Button bexit = new Button("Exit");
// 01- main
public static void main(String args[]) {
new x().init();
}
// 02 - init
void init() {
f.setSize(700,400);
f.setLocation(80,50);
f.setLayout(null);
f.setResizable(true);
f.setBackground(Color.pink);
f.add(bexit);
f.add(text);
text.setBounds(115,30,200,300);
bexit.setBounds(10,30,100,30);
bexit.addActionListener(this);
showRegisRecord();
f.setVisible(true);
}
// 03 - rpt01
public x() {
try {
  Class.forName("sun.jdbc.odbc.JdbcOdbcDriver");
  connection = DriverManager.getConnection(sourceURL);
  statement = connection.createStatement();
} catch (SQLException sqle) {
  System.err.println("Error creating connection");
} catch (ClassNotFoundException cnfe) {
  System.err.println(cnfe.toString());
}
}
// 04 - actionPerformed
public void actionPerformed(ActionEvent a) {
if (a.getSource()== bexit) System.exit(0);
}
// 05 - showRegisRecord
public void showRegisRecord() {
try {
statement = connection.createStatement(ResultSet.TYPE_SCROLL_SENSITIVE,
  ResultSet.CONCUR_READ_ONLY);
ResultSet ShowAll = statement.executeQuery("SELECT  *  FROM reg_student");
String tmp;
ShowAll.last();
int crow=ShowAll.getRow();
ShowAll.first();
if (crow>=1) while (!ShowAll.isAfterLast()) {
tmp=ShowAll.getString(3);
text.setText(tmp.toString()+ "\n" + text.getText() );
ShowAll.next();
}
} catch (SQLException sqle) {
System.err.println("\nSQLException:\n");
}
} // end showRegisRecord
} // end class
"Imagination is more important than knowledge" - Albert Einstein
Home
Thaiabc.com
Thainame.net
Lampang.net
Nation university
PHP
MySQL
Visual basic.NET
TabletPC
Linux
Online quiz
Download
Search engine
Web ranking
Add website
Blog : Education
Blog : ACLA
Blog : Lampang
Facebook.com
Twitter.com
About us
My dream
Site map
Sponsor
http://goo.gl/72BPC
